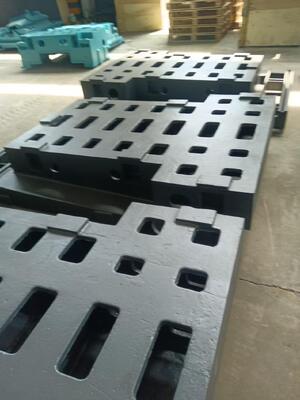

Grey Iron Machine Tool Base Support Plate (Resin Sand Casting)
| MOQ: | Parameter Details Material Grey Cast Iron, Grade HT250 (Equivalent to ASTM A48 Class 30) Casting Process Resin Sand Casting (High Dimensional Accuracy, Low Surface Roughness) Dimensions (Approx.) Length: 1.2 – 1.5 m Width: 0.8 – 1.0 m Thickness: 100 – 15 |
| Price: | $ 3.2/kg |
| Standard Packaging: | Fumigated wooden pallet + steel strapping (export standard) |
| Delivery Period: | Parameter Details Material Grey Cast Iron, Grade HT250 (Equivalent to ASTM A48 Class 30) Casting Process Resin Sand Casting (High Dimensional Accuracy, Low Surface Roughness) Dimensions (Approx.) Length: 1.2 – 1.5 m Width: 0.8 – 1.0 m Thickness: 100 – 15 |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000T/mouth |
Detail Information
Product Description
| Parameter | Details |
|---|---|
| Material | Grey Cast Iron, Grade HT250 (Equivalent to ASTM A48 Class 30) |
| Casting Process | Resin Sand Casting (High Dimensional Accuracy, Low Surface Roughness) |
| Dimensions (Approx.) | Length: 1.2 – 1.5 m Width: 0.8 – 1.0 m Thickness: 100 – 150 mm |
| Structural Design | Reinforced with ribs and through-holes; Open area ratio ≈ 30–40% |
| Density | ～7.2 g/cm³ |
| Estimated Weight | 550 – 700 kg per piece (calculated based on net volume after hole deduction) |
| Surface Finish | As-cast or shot-blasted (Ra ≤ 50 μm); CNC machining available upon request |
| Typical Applications | CNC machine beds, grinding machine bases, precision workbenches, mold support frames |
| Packaging | Fumigated wooden pallet + steel strapping (export standard) |
| MOQ | 1–5 pcs (trial order); 10+ pcs for production batch |
| Lead Time | 35–50 days after drawing approval |
