Name: Sand-Cast Ductile Iron QT450 Filter Casting
Brand: Puyang Zhongyi Electronic Technology Co., Ltd.
SKU: Customize by providing your own image
Availability: InStock

MOQ:	20 pcs
Price:	discuss in detail
Standard Packaging:	Anti-rust oil + plastic wrap + wooden pallets (export standard)
Delivery Period:	30–45 days after deposit confirmation
Payment Method:	T/T
Supply Capacity:	1,000 tons per month

Details Information

Product Description

Detail Information

Place of Origin

china

Brand Name

discuss in detail

Certification

ISO 9001 Quality Management System Certification

Model Number

Customize by providing your own image

Product Description

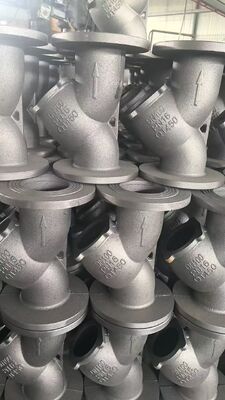

Sand-Cast Ductile Iron QT450 Filter Housing – Product Specification Sheet

Parameter	Specification
Product Name	Sand-Cast Ductile Iron Filter Housing / Y-Type Strainer Body
Material Grade	Ductile Iron QT450 (Equivalent: EN-GJS-450-10 / ASTM A536 65-45-12)
Casting Process	Green Sand Casting (Manual/Resin Core, High Precision)
Application	Industrial Filtration Systems, Water Treatment Plants, Pump Intake Lines, Oil & Gas, HVAC, Chemical Processing
Nominal Diameter (DN)	DN50, DN80, DN100, DN150, DN200, DN250, DN300 (Custom sizes available)
Pressure Rating (PN)	PN10, PN16, PN25 (as marked; e.g., PN16 shown in image)
Connection Type	Flanged End (RF / FF), ANSI / DIN Standards Compatible
Surface Finish	As-cast (anti-rust treated), Machined sealing face available upon request
Tolerance Class	CT8–CT10 (per ISO 8062)
Mechanical Properties	Tensile Strength: ≥450 MPa Yield Strength: ≥310 MPa Elongation: ≥10%
Chemical Composition	C: 3.4–3.8%, Si: 2.2–2.8%, Mn: 0.4–0.7%, Mg: 0.03–0.05% (per batch report)
Non-Destructive Testing (NDT)	Visual Inspection, Penetrant Testing (PT), Ultrasonic Testing (UT) available
Pressure Test	Hydrostatic test up to 1.5× PN pressure (e.g., 24 bar for PN16)
Certifications	ISO 9001:2015, Material Test Report (MTR), Spectrometer Analysis, Third-party Inspection Available
Standards Compliance	GB/T 1348, EN 1563, ASTM A536, DIN 2615, ASME B16.1
MOQ (Minimum Order Qty)	20 pcs (sample order) 100+ pcs (bulk production)
Production Capacity	Up to 300 tons per month
Lead Time	30–45 days after deposit confirmation (depends on order size & complexity)
Packaging	Anti-rust oil + plastic wrap + wooden pallets (export standard)
Customization Options	✔ Custom drawings (PDF, STEP, DWG) ✔ OEM/ODM branding ✔ Logo marking ✔ Multiple DN/PN combinations
HS Code	7325.10.00 (Cast ductile iron fittings)
